M8 Automatic Laser Pocket Machine with Adjustable Molds

Open pockets 4x faster. Change styles in minutes, not shifts.

The M8 laser pocket machine handles the boring, repetitive work so your sewers don't have to. It cuts and creases pockets for jeans, work pants, and jackets in about 17 seconds flat, with a 150W laser and servo-driven feeding that keep edges clean on denim, twill, and most woven fabrics.

Need to switch from a single-lip pocket to a zippered flap? Swap the mold, pull up a saved pattern, and you're running again in a few minutes. No realignment, no fuss. The open frame means you can see what's happening and get in there for cleaning without a fight.

Factories in over 20 countries run these daily. We'll customize molds to your exact specs and stay on call with remote support for the life of the machine.

Get a Quote Back to Laser Pocket Machines
M8 Automatic Laser Pocket Machine with Adjustable Molds
#9

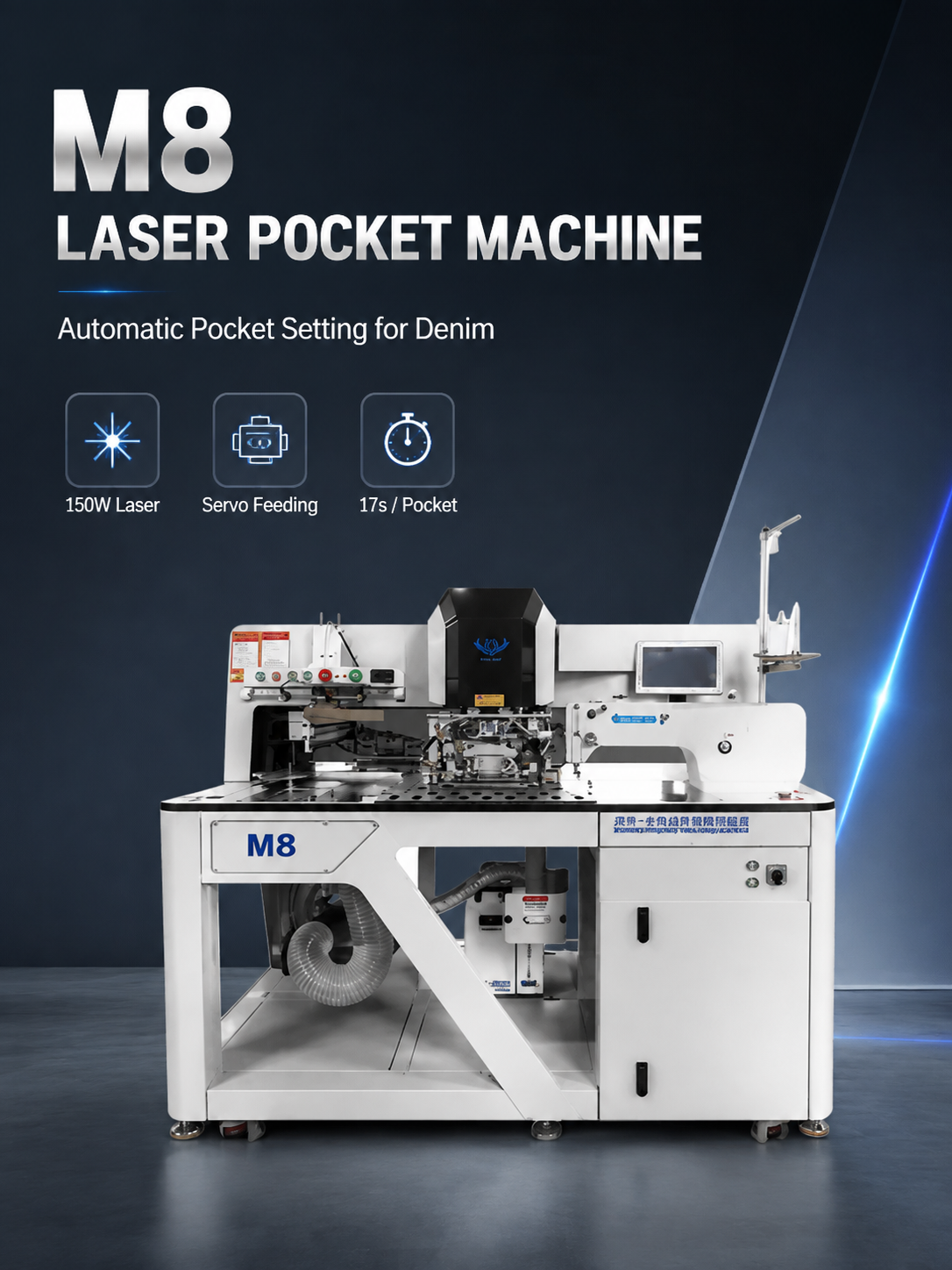

M8 Automatic Laser Pocket Machine with Adjustable Molds detail image 1

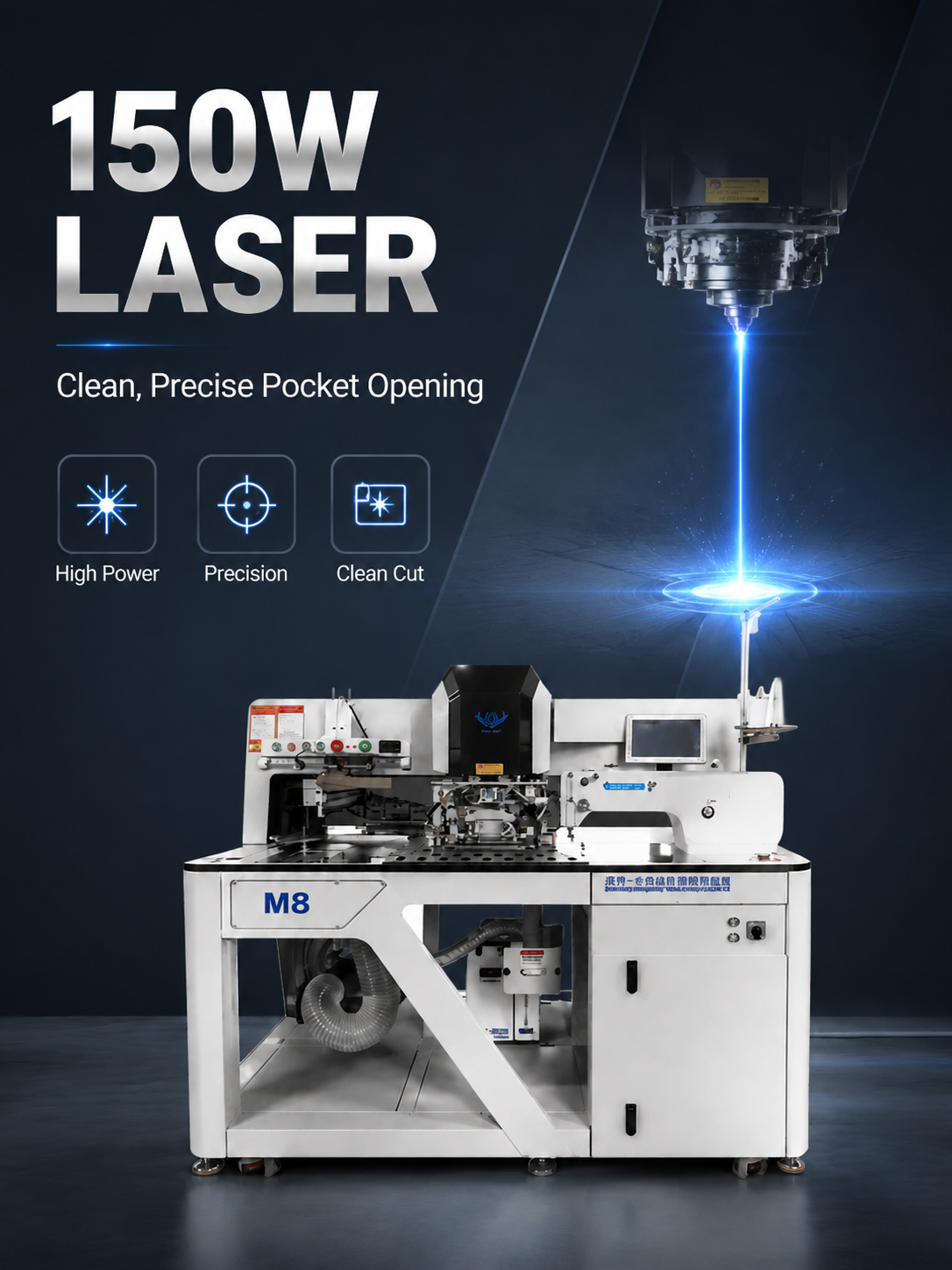

M8 Automatic Laser Pocket Machine with Adjustable Molds detail image 2

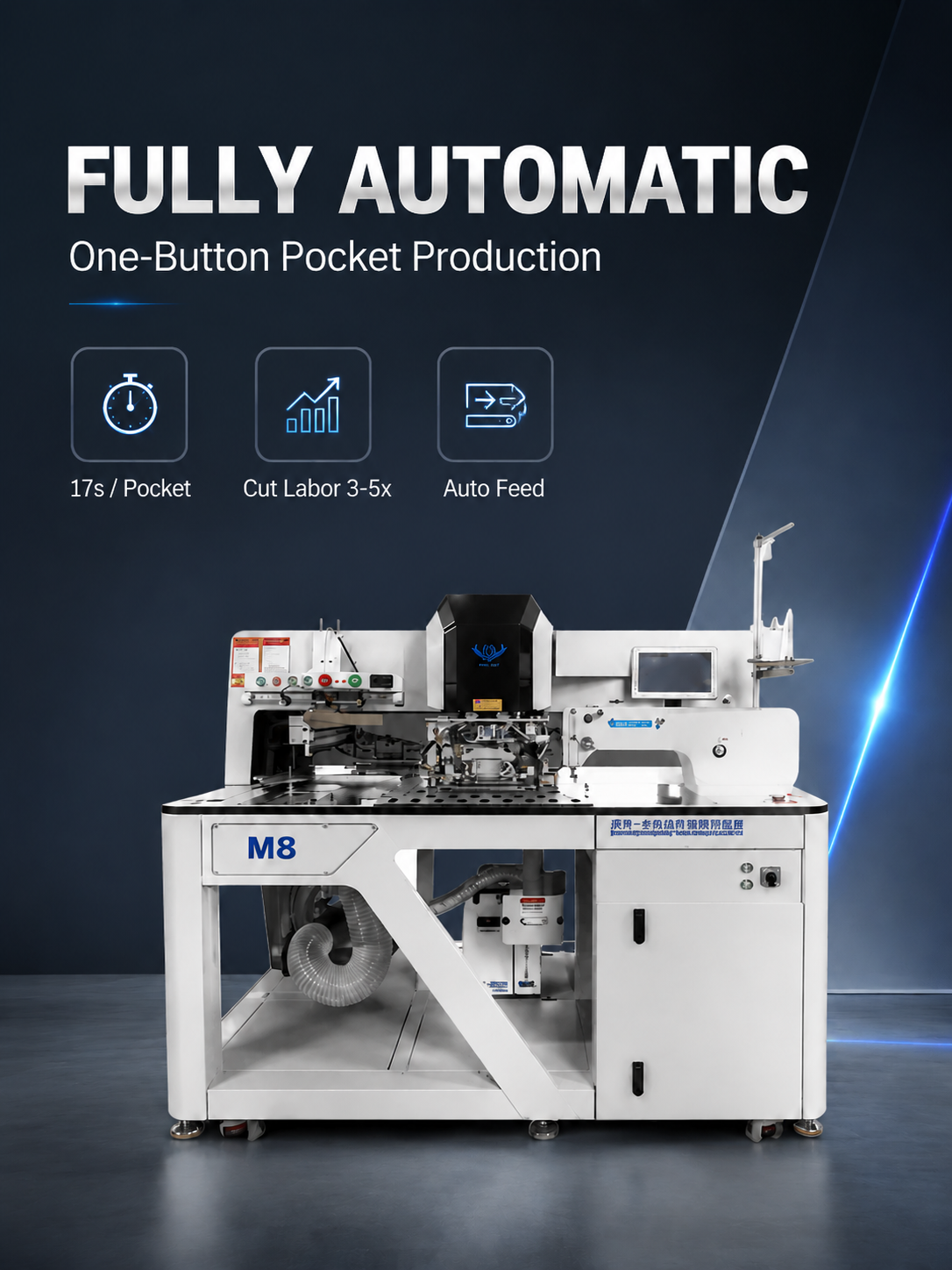

M8 Automatic Laser Pocket Machine with Adjustable Molds detail image 3

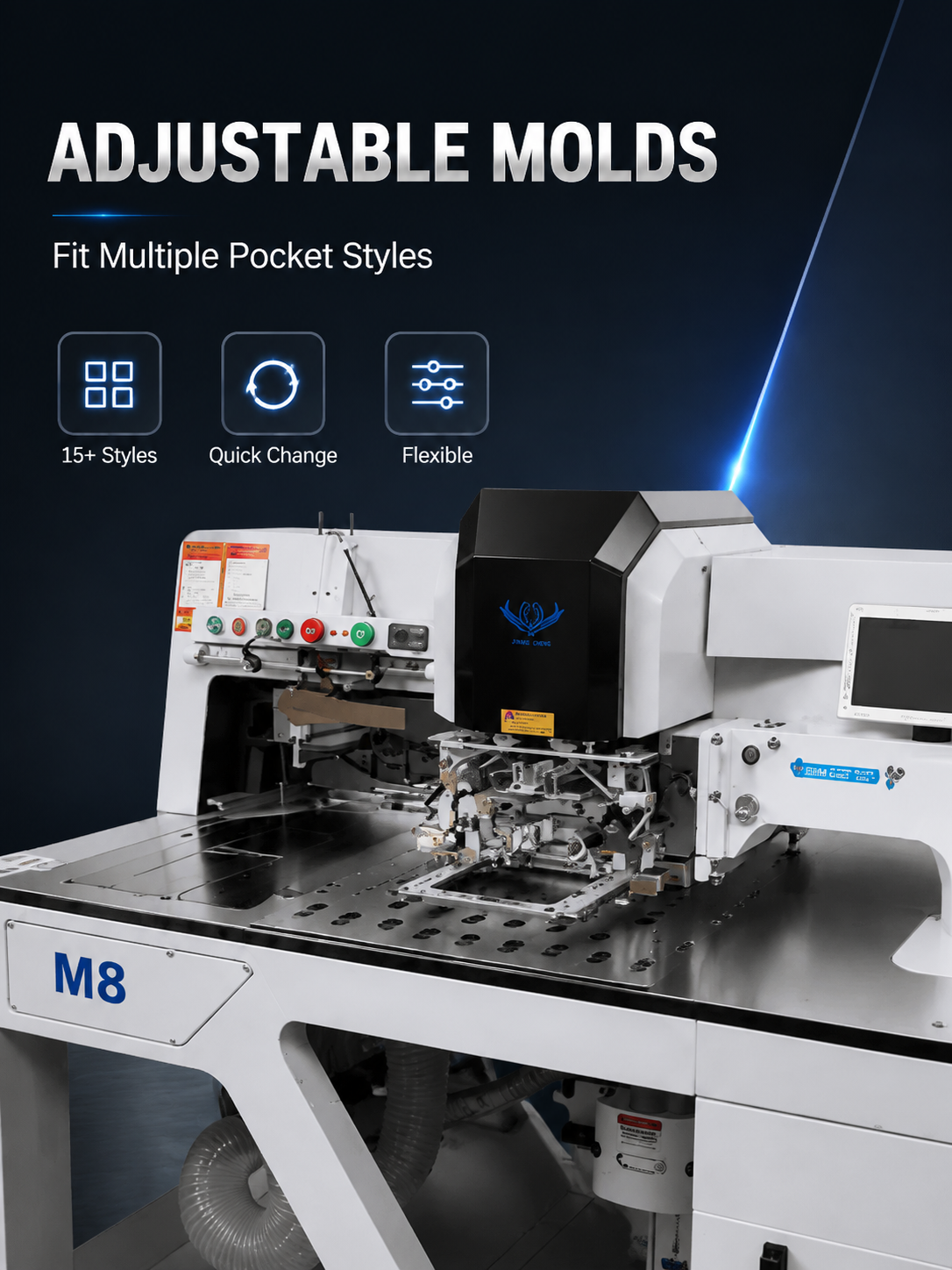

M8 Automatic Laser Pocket Machine with Adjustable Molds detail image 4

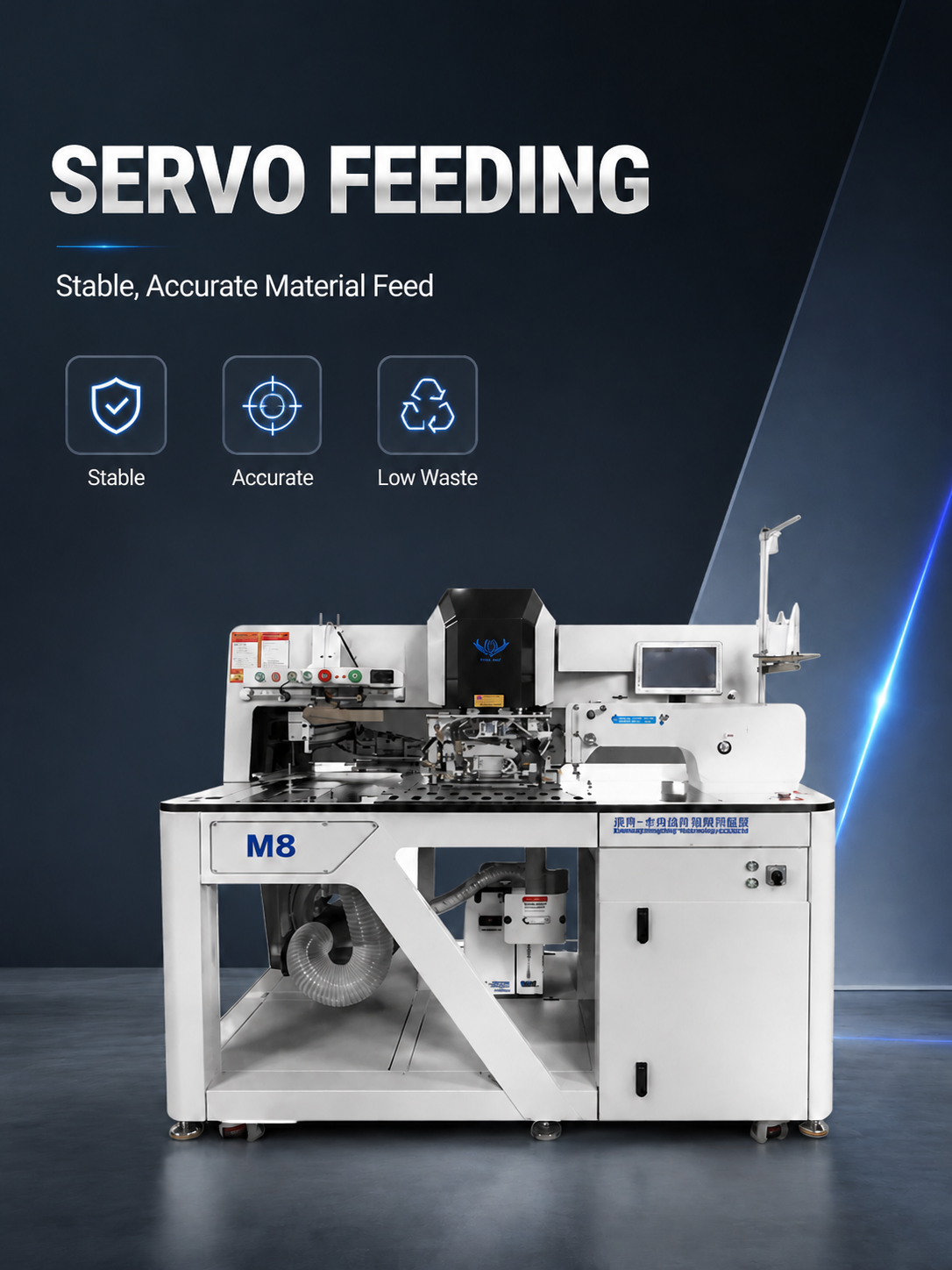

M8 Automatic Laser Pocket Machine with Adjustable Molds detail image 5

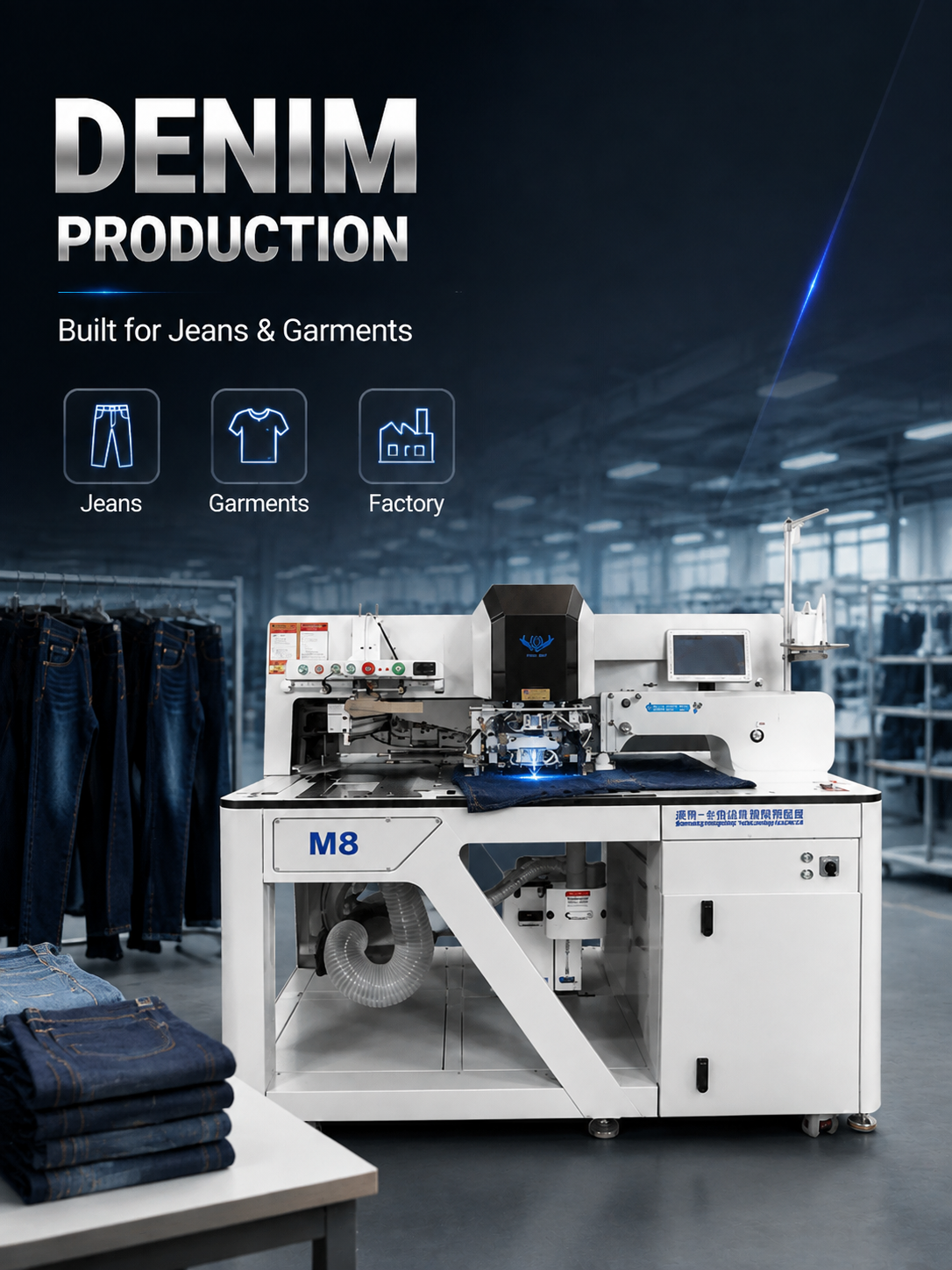

M8 Automatic Laser Pocket Machine with Adjustable Molds detail image 6

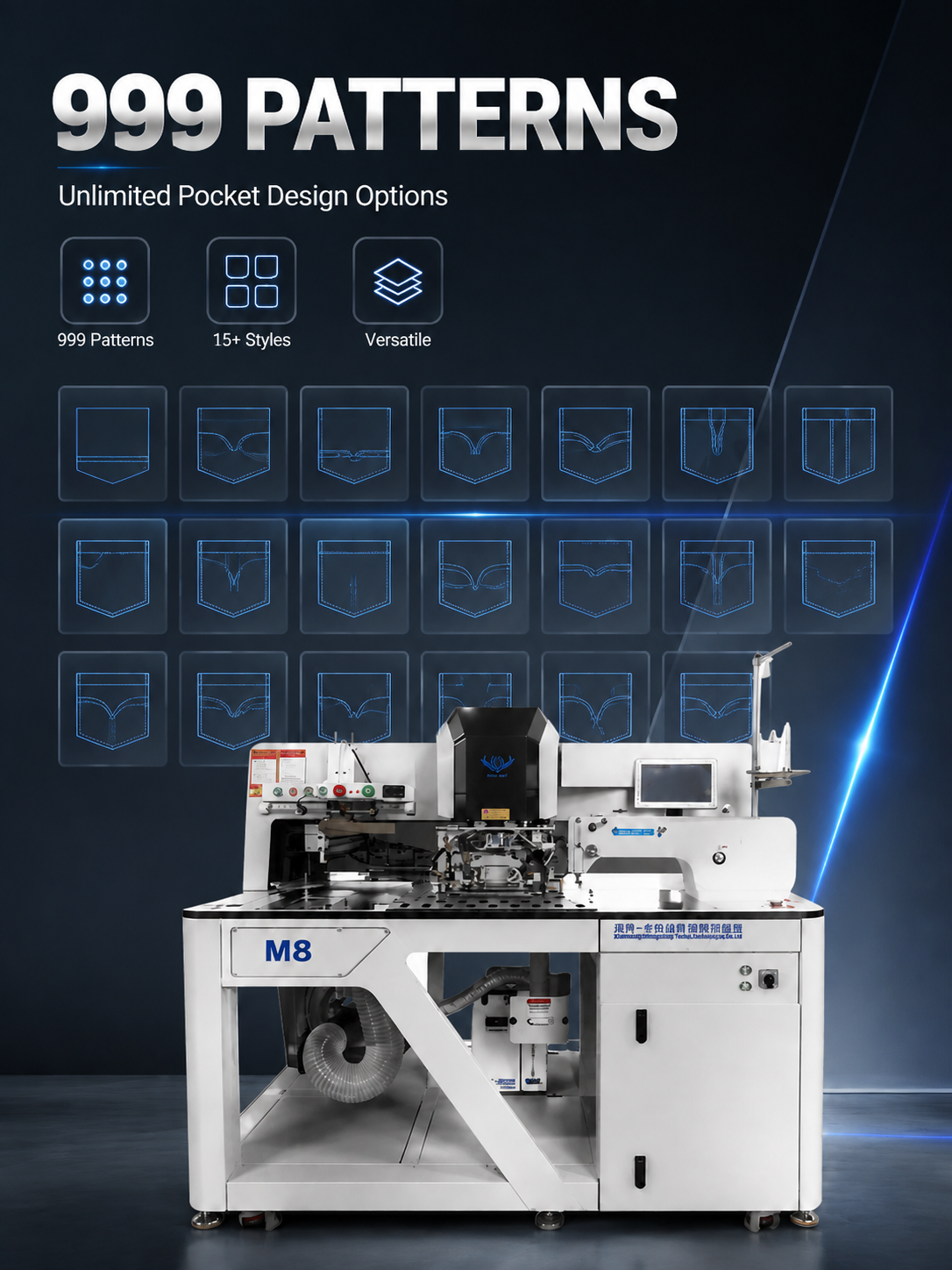

M8 Automatic Laser Pocket Machine with Adjustable Molds detail image 7

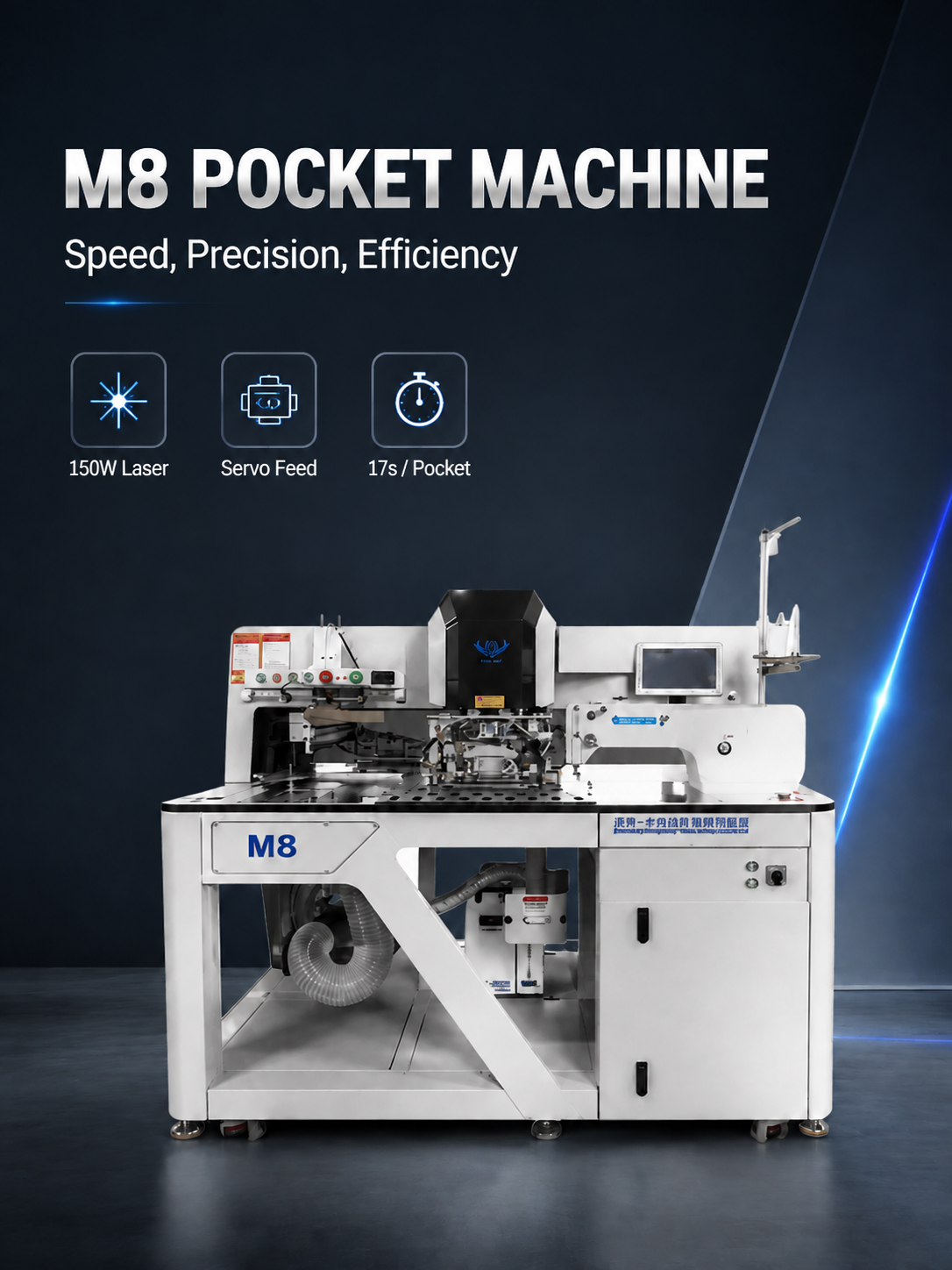

M8 Automatic Laser Pocket Machine with Adjustable Molds detail image 8
Highlights
Key Advantages
  • 17 seconds per finished pocket — about 4x faster than manual folding and pressing
  • One machine covers 15+ pocket styles: single lip, double lip, zipper, flap, and more
  • Cuts labor by 3-5 operators per line; payback typically under 12 months
  • 999 storable patterns means style changes take minutes, not hours
  • 150W laser cuts and seals edges in one pass, so no fraying on denim or canvas
  • Open-frame design lets your maintenance team reach everything without disassembly
Use Cases
Applications
  • Denim jeans and jackets
  • Workwear and uniforms with utility pockets
  • Chinos and casual trousers
  • Cargo pants and shorts
  • Overcoats and outerwear with internal pockets
  • High-volume garment factories running multiple styles daily
Specs
Technical Specifications
Laser Power150W CO2 sealed tube
Cycle Time17 seconds per pocket (standard style)
Pocket Styles Supported15+ (single lip, double lip, zipper, flap, curved, special-shape)
Pattern Storage999 patterns (user-programmable via touchscreen)
Feeding SystemServo motor with closed-loop control
Mold TypeQuick-change adjustable molds (custom shapes available)
Labor SavingReplaces 3-5 manual operators per shift
FrameOpen-structure steel frame with accessible components
Compatible FabricsDenim, cotton twill, canvas, polyester blends (up to 14 oz)
Power Requirements220V single-phase, 1.5kW average draw
Warranty2 years on laser tube, lifetime tech support
Details
Detailed Description
Giemcheng M8 laser automatic pocket opening machine is a cost‑effective model for mass garment production.Equipped with upgraded pocket‑lip structure, circulating board and top‑material structure, it greatly reduces bag‑fabric folding trouble during high‑speed operation. The 150W laser cutting head and servo feeding system deliver stable performance for denim, cotton and many other fabrics.It supports more than 15 pocket styles: single lip, double lips, zipper pockets, flap pockets, special‑shape pockets, realize changing styles without changing machines. Up to 999 sewing patterns can be stored. Open‑structure frame brings easy maintenance and better heat dissipation.With 35 patented technologies, thousands of units run in global clothing factories. Custom molds, overseas remote technical support and lifetime after‑sales service are available.

Core Spec Highlight
  • 17 seconds for one finished pocket
  • Save 3‑5 labors, fast ROI
  • 150W laser head, servo motor feeding
  • Max. 999 storable sewing patterns
  • Wide compatibility for jeans, trousers, overcoats
FAQ
FAQ
How many operators do I need to run the M8?
One operator can load fabric and press start. The machine does the folding, cutting, and creasing. Depending on your current process, you can reassign 3-5 people to other tasks.
Can it handle heavy denim without burning edges?
Yes. The 150W laser cuts cleanly through 14 oz denim and seals the edge at the same time, so you don't get fraying in the wash. We recommend running a test swatch for your exact fabric, and we'll adjust parameters remotely if needed.
How long does it take to switch from one pocket style to another?
About 5 minutes. You swap the mold (no tools required), select the saved pattern on the touchscreen, and the machine calibrates itself. No need to realign mirrors or adjust focus.
Do I need to send you my pocket designs for custom molds?
If your design is outside the standard 15+ styles, yes. Send us a DXF or a paper template, and we'll machine a mold to match. Typical lead time is 10-14 days including testing on sample fabric.
What if the machine breaks down?
Spare parts are stocked in our US and EU warehouses for common items (laser tubes, lenses, belts). For anything else, our support engineers can log in remotely to diagnose. We've never left a customer stranded in 8 years of selling these.
Is the M8 suitable for small batch or just mass production?
It works for both. The pattern memory and quick mold change make it practical for runs as small as 50 pieces. But the real labor savings kick in when you're running 500+ pockets per day.
Stock
Check Stock & Get a Quote
Send us a sample or drawing. We'll film a 17-second cycle on your actual fabric and send you the video with a quote.
